Series DH02SDS Max Drill BitsPGM certified

SDS Max Hammer Drill Bits — 5-Slot Shank

PGM-certified SDS Max (18 mm, 5-slot) hammer drill bits for heavy-duty rotary hammers and combination hammers. 8–40 mm diameters, 220–1000 mm total lengths, reinforced carbide head for rebar-rich concrete, anchor and through-wall holes.

134 sizes, 8–40 mm × 220–1200 mm — see size table

MOQ

100–200 pcs per size

Lead time

20–30 days

Samples

Free, 5–7 days

Shipping

FOB Ningbo / Shanghai

PGM certified series
8 – 40 mm × 220 – 1000 mm, 78 catalogue sizes

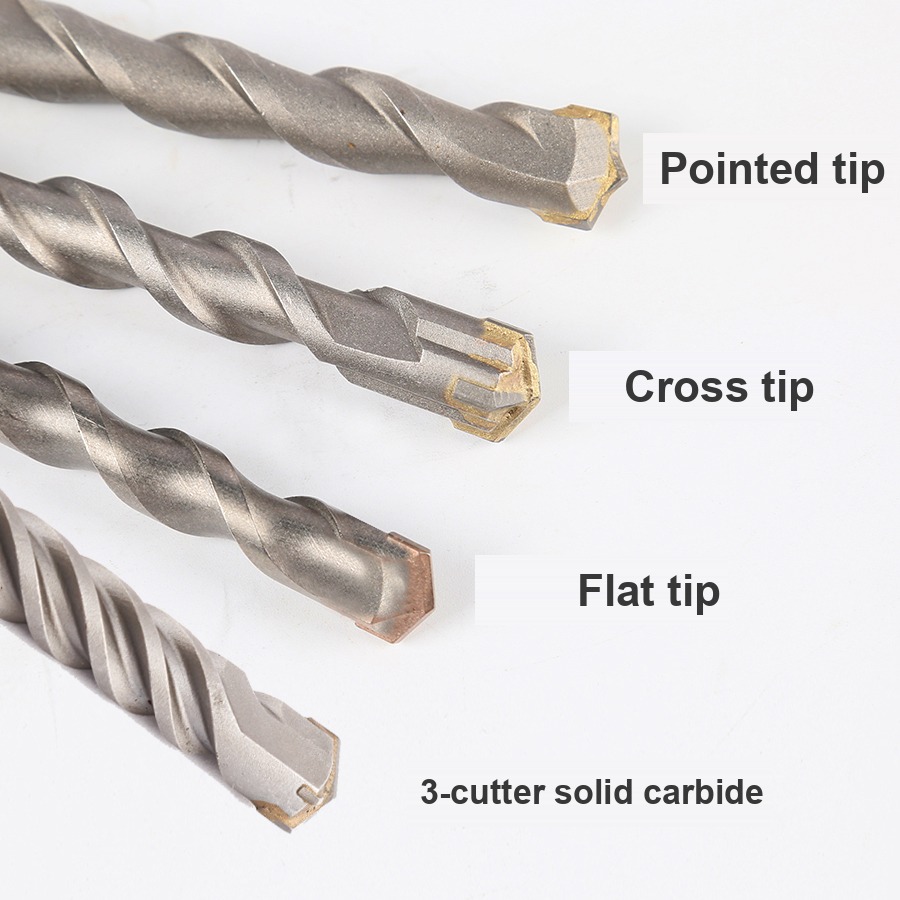

4-cutter heads for reinforced concrete
Fits Bosch, Hilti TE-Y, Makita, DeWalt, Milwaukee SDS Max hammers
MOQ 100 pcs per size, private label available

Request a Quote for DH02 WhatsApp

Manufactured by Zhejiang Dehui Tools Co., Ltd., Yueqing · 41+ years · PGM member since 2009 · ISO 9001 / 14001

Specifications

DH02 technical data

ShankSDS Max (18 mm, 5-slot)

Diameter8 – 40 mm

Total length220 – 1000 mm

TipSpecial-grade tungsten carbide, 1200 °C brazed

BodyAlloy structural steel, heat treated

UseReinforced concrete, anchor holes, stone

ApplicationSuitable for all kinds of concrete, stone, brick wall

MOQ100–200 pcs per size

CertificationPGM (Prüfgemeinschaft Mauerbohrer e.V.) · factory ISO 9001 / 14001

Payment / shippingT/T 30% deposit, balance before shipment · FOB Ningbo / Shanghai

Size Table

DH02 sizes & catalogue codes

134 sizes. Code = DH + series + diameter + total length. Inch column is the nearest fractional equivalent for reference; bits are metric.

Code	Ø mm	Ø inch	Total length	Working length
DH02080220	8	5/16"	220 mm	80 mm
DH02080280	8	5/16"	280 mm	140 mm
DH02100220	10	13/32"	220 mm	80 mm
DH02100280	10	13/32"	280 mm	140 mm
DH02100340	10	13/32"	340 mm	200 mm
DH02100400	10	13/32"	400 mm	260 mm
DH02100540	10	13/32"	540 mm	400 mm
DH02100570	10	13/32"	570 mm	430 mm
DH02120220	12	15/32"	220 mm	80 mm
DH02120280	12	15/32"	280 mm	140 mm
DH02120340	12	15/32"	340 mm	200 mm
DH02120400	12	15/32"	400 mm	260 mm
DH02120540	12	15/32"	540 mm	400 mm
DH02120570	12	15/32"	570 mm	430 mm
DH02140220	14	9/16"	220 mm	80 mm
DH02140280	14	9/16"	280 mm	140 mm
DH02140340	14	9/16"	340 mm	200 mm
DH02140400	14	9/16"	400 mm	260 mm
DH02140540	14	9/16"	540 mm	400 mm
DH02140570	14	9/16"	570 mm	430 mm
DH02140700	14	9/16"	700 mm	560 mm
DH02140800	14	9/16"	800 mm	660 mm
DH02140900	14	9/16"	900 mm	760 mm
DH02141000	14	9/16"	1000 mm	860 mm
DH02141200	14	9/16"	1200 mm	1060 mm
DH02160220	16	5/8"	220 mm	80 mm
DH02160280	16	5/8"	280 mm	140 mm
DH02160340	16	5/8"	340 mm	200 mm
DH02160400	16	5/8"	400 mm	260 mm
DH02160540	16	5/8"	540 mm	400 mm
DH02160570	16	5/8"	570 mm	430 mm
DH02160700	16	5/8"	700 mm	560 mm
DH02160800	16	5/8"	800 mm	660 mm
DH02160900	16	5/8"	900 mm	760 mm
DH02161000	16	5/8"	1000 mm	860 mm
DH02161200	16	5/8"	1200 mm	1060 mm
DH02180220	18	23/32"	220 mm	80 mm
DH02180280	18	23/32"	280 mm	140 mm
DH02180340	18	23/32"	340 mm	200 mm
DH02180400	18	23/32"	400 mm	260 mm
DH02180540	18	23/32"	540 mm	400 mm
DH02180570	18	23/32"	570 mm	430 mm
DH02180700	18	23/32"	700 mm	560 mm
DH02180800	18	23/32"	800 mm	660 mm
DH02180900	18	23/32"	900 mm	760 mm
DH02181000	18	23/32"	1000 mm	860 mm
DH02181200	18	23/32"	1200 mm	1060 mm
DH02200220	20	25/32"	220 mm	80 mm
DH02200280	20	25/32"	280 mm	140 mm
DH02200340	20	25/32"	340 mm	200 mm
DH02200400	20	25/32"	400 mm	260 mm
DH02200540	20	25/32"	540 mm	400 mm
DH02200570	20	25/32"	570 mm	430 mm
DH02200700	20	25/32"	700 mm	560 mm
DH02200800	20	25/32"	800 mm	660 mm
DH02200900	20	25/32"	900 mm	760 mm
DH02201000	20	25/32"	1000 mm	860 mm
DH02201200	20	25/32"	1200 mm	1060 mm
DH02220220	22	7/8"	220 mm	80 mm
DH02220280	22	7/8"	280 mm	140 mm
DH02220340	22	7/8"	340 mm	200 mm
DH02220400	22	7/8"	400 mm	260 mm
DH02220540	22	7/8"	540 mm	400 mm
DH02220570	22	7/8"	570 mm	430 mm
DH02220700	22	7/8"	700 mm	560 mm
DH02220800	22	7/8"	800 mm	660 mm
DH02220900	22	7/8"	900 mm	760 mm
DH02221000	22	7/8"	1000 mm	860 mm
DH02221200	22	7/8"	1200 mm	1060 mm
DH02250220	25	31/32"	220 mm	80 mm
DH02250280	25	31/32"	280 mm	140 mm
DH02250340	25	31/32"	340 mm	200 mm
DH02250400	25	31/32"	400 mm	260 mm
DH02250540	25	31/32"	540 mm	400 mm
DH02250570	25	31/32"	570 mm	430 mm
DH02250700	25	31/32"	700 mm	560 mm
DH02250800	25	31/32"	800 mm	660 mm
DH02250900	25	31/32"	900 mm	760 mm
DH02251000	25	31/32"	1000 mm	860 mm
DH02251200	25	31/32"	1200 mm	1060 mm
DH02280280	28	1 3/32"	280 mm	140 mm
DH02280340	28	1 3/32"	340 mm	200 mm
DH02280400	28	1 3/32"	400 mm	260 mm
DH02280540	28	1 3/32"	540 mm	400 mm
DH02280570	28	1 3/32"	570 mm	430 mm
DH02280700	28	1 3/32"	700 mm	560 mm
DH02280800	28	1 3/32"	800 mm	660 mm
DH02280900	28	1 3/32"	900 mm	760 mm
DH02281000	28	1 3/32"	1000 mm	860 mm
DH02281200	28	1 3/32"	1200 mm	1060 mm
DH02300280	30	1 3/16"	280 mm	140 mm
DH02300340	30	1 3/16"	340 mm	200 mm
DH02300400	30	1 3/16"	400 mm	260 mm
DH02300540	30	1 3/16"	540 mm	400 mm
DH02300570	30	1 3/16"	570 mm	430 mm
DH02300700	30	1 3/16"	700 mm	560 mm
DH02300800	30	1 3/16"	800 mm	660 mm
DH02300900	30	1 3/16"	900 mm	760 mm
DH02301000	30	1 3/16"	1000 mm	860 mm
DH02301200	30	1 3/16"	1200 mm	1060 mm
DH02320280	32	1 1/4"	280 mm	140 mm
DH02320340	32	1 1/4"	340 mm	200 mm
DH02320400	32	1 1/4"	400 mm	260 mm
DH02320540	32	1 1/4"	540 mm	400 mm
DH02320570	32	1 1/4"	570 mm	430 mm
DH02320700	32	1 1/4"	700 mm	560 mm
DH02320800	32	1 1/4"	800 mm	660 mm
DH02320900	32	1 1/4"	900 mm	760 mm
DH02321000	32	1 1/4"	1000 mm	860 mm
DH02321200	32	1 1/4"	1200 mm	1060 mm
DH02350400	35	1 3/8"	400 mm	260 mm
DH02350540	35	1 3/8"	540 mm	400 mm
DH02350570	35	1 3/8"	570 mm	430 mm
DH02350700	35	1 3/8"	700 mm	560 mm
DH02350800	35	1 3/8"	800 mm	660 mm
DH02350900	35	1 3/8"	900 mm	760 mm
DH02351000	35	1 3/8"	1000 mm	860 mm
DH02351200	35	1 3/8"	1200 mm	1060 mm
DH02380400	38	1 1/2"	400 mm	260 mm
DH02380540	38	1 1/2"	540 mm	400 mm
DH02380570	38	1 1/2"	570 mm	430 mm
DH02380700	38	1 1/2"	700 mm	560 mm
DH02380800	38	1 1/2"	800 mm	660 mm
DH02380900	38	1 1/2"	900 mm	760 mm
DH02381000	38	1 1/2"	1000 mm	860 mm
DH02381200	38	1 1/2"	1200 mm	1060 mm
DH02400400	40	1 9/16"	400 mm	260 mm
DH02400540	40	1 9/16"	540 mm	400 mm
DH02400570	40	1 9/16"	570 mm	430 mm
DH02400700	40	1 9/16"	700 mm	560 mm
DH02400800	40	1 9/16"	800 mm	660 mm
DH02400900	40	1 9/16"	900 mm	760 mm
DH02401000	40	1 9/16"	1000 mm	860 mm
DH02401200	40	1 9/16"	1200 mm	1060 mm

Need a length that is not listed? Non-catalogue lengths are made from 500 pcs per size.

Product Details

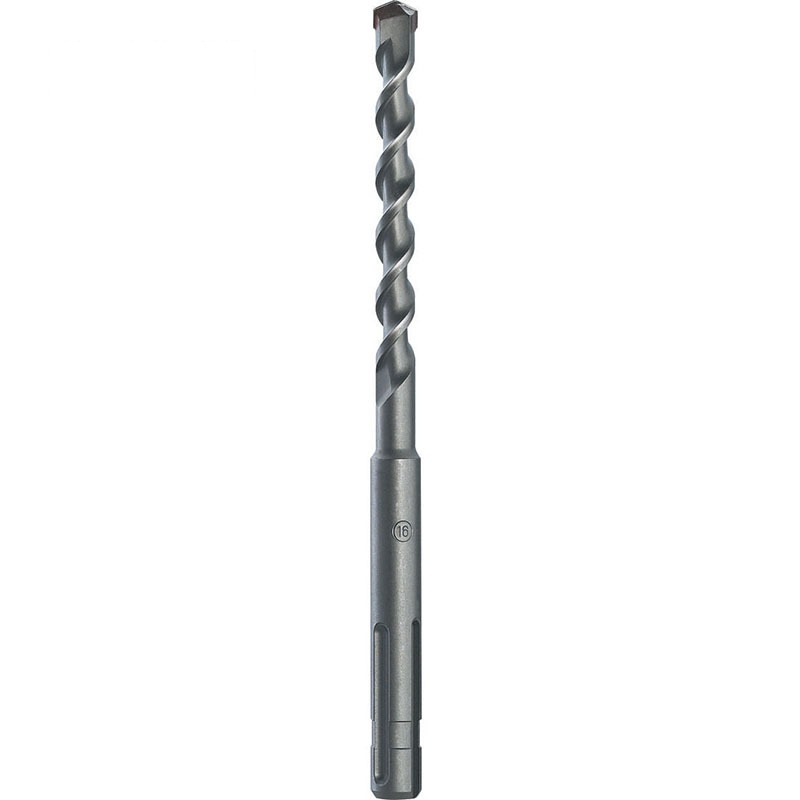

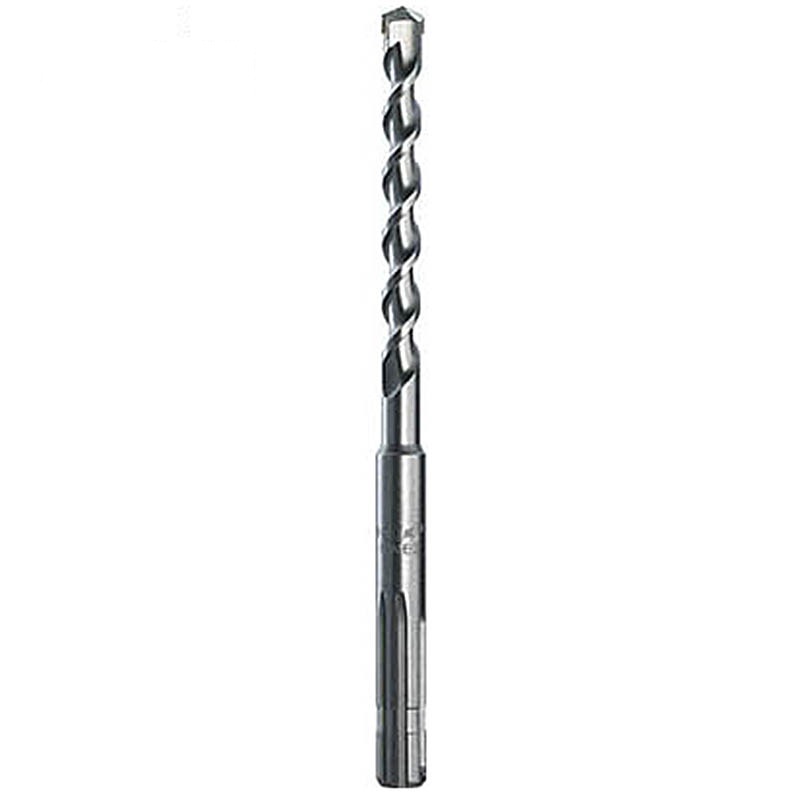

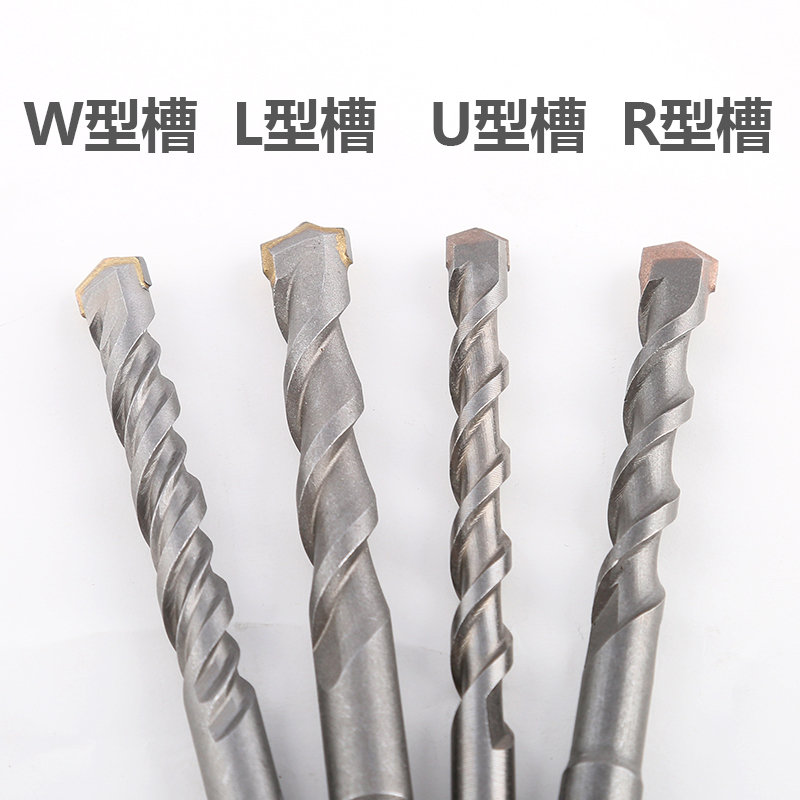

SDS Max Hammer Drill Bits — 5-Slot Shank — detail views

PGM certified series

Tested hole tolerance, tip symmetry and life.

1200 °C automatic brazing

German MAHLER lines — no hand-torch joints.

20–30 days lead time

FOB Ningbo / Shanghai; CIF to SE Asia and the Gulf on request.

FAQ

What sizes of sds max hammer drill bits — 5-slot shank do you make?

134 catalogue sizes from 8–40 mm diameter and 220–1200 mm total length — see the full table with codes above. Non-catalogue lengths can be made from 500 pcs.

What is the MOQ for DH02?

100–200 pcs per size; sizes can be mixed within the series. Samples of standard sizes are free (courier collect) and ship in 5–7 days.

Is DH02 PGM certified?

Yes. SDS Max Hammer Drill Bits — 5-Slot Shank is within the scope of Dehui's PGM (Prüfgemeinschaft Mauerbohrer e.V.) certificate, held since 2009. The test covers hole diameter tolerance, carbide tip symmetry and drilling performance.

Can you put our brand on DH02?

Yes — laser or stamp marking on the shank plus printed blister, case or box. Artwork approval adds about one week to the standard lead time.
