Tile & Brick Drill Bits — Multi-Use, Straight Shank
Straight-shank carbide drill bits for ceramic tile, brick and light masonry on rotary or impact drills. Same size range as our impact series with a tile-friendly cutting geometry.
43 sizes, 3–20 mm × 65–600 mm — see size table
MOQ
100–200 pcs per size
Lead time
20–30 days
Samples
Free, 5–7 days
Shipping
FOB Ningbo / Shanghai
- Drills tile, brick and plaster without cracking
- Straight shank fits any drill chuck
- 3 – 28 mm
Manufactured by Zhejiang Dehui Tools Co., Ltd., Yueqing · 41+ years · PGM member since 2009 · ISO 9001 / 14001
Specifications
DH04-T technical data
Size Table
DH04-T sizes & catalogue codes
43 sizes. Code = DH + series + diameter + total length. Inch column is the nearest fractional equivalent for reference; bits are metric.
| Code | Ø mm | Ø inch | Total length | Working length |
|---|---|---|---|---|
| DH04030065 | 3 | 1/8" | 65 mm | 30 mm |
| DH04040075 | 4 | 5/32" | 75 mm | 40 mm |
| DH04040120 | 4 | 5/32" | 120 mm | 72 mm |
| DH04040150 | 4 | 5/32" | 150 mm | 100 mm |
| DH04050085 | 5 | 3/16" | 85 mm | 50 mm |
| DH04050100 | 5 | 3/16" | 100 mm | 55 mm |
| DH04050120 | 5 | 3/16" | 120 mm | 72 mm |
| DH04050150 | 5 | 3/16" | 150 mm | 100 mm |
| DH04050200 | 5 | 3/16" | 200 mm | 135 mm |
| DH04060100 | 6 | 1/4" | 100 mm | 55 mm |
| DH04060120 | 6 | 1/4" | 120 mm | 72 mm |
| DH04060150 | 6 | 1/4" | 150 mm | 100 mm |
| DH04060200 | 6 | 1/4" | 200 mm | 135 mm |
| DH04060250 | 6 | 1/4" | 250 mm | 180 mm |
| DH04060300 | 6 | 1/4" | 300 mm | 225 mm |
| DH04070100 | 7 | 9/32" | 100 mm | 55 mm |
| DH04070120 | 7 | 9/32" | 120 mm | 72 mm |
| DH04070150 | 7 | 9/32" | 150 mm | 100 mm |
| DH04070350 | 7 | 9/32" | 350 mm | 275 mm |
| DH04080120 | 8 | 5/16" | 120 mm | 72 mm |
| DH04080150 | 8 | 5/16" | 150 mm | 90 mm |
| DH04080200 | 8 | 5/16" | 200 mm | 135 mm |
| DH04080250 | 8 | 5/16" | 250 mm | 180 mm |
| DH04080300 | 8 | 5/16" | 300 mm | 225 mm |
| DH04080400 | 8 | 5/16" | 400 mm | 320 mm |
| DH04080600 | 8 | 5/16" | 600 mm | 450 mm |
| DH04100120 | 10 | 13/32" | 120 mm | 72 mm |
| DH04100150 | 10 | 13/32" | 150 mm | 100 mm |
| DH04100200 | 10 | 13/32" | 200 mm | 135 mm |
| DH04100250 | 10 | 13/32" | 250 mm | 180 mm |
| DH04100300 | 10 | 13/32" | 300 mm | 225 mm |
| DH04100400 | 10 | 13/32" | 400 mm | 320 mm |
| DH04100600 | 10 | 13/32" | 600 mm | 450 mm |
| DH04120150 | 12 | 15/32" | 150 mm | 90 mm |
| DH04120200 | 12 | 15/32" | 200 mm | 135 mm |
| DH04120250 | 12 | 15/32" | 250 mm | 180 mm |
| DH04120300 | 12 | 15/32" | 300 mm | 225 mm |
| DH04120400 | 12 | 15/32" | 400 mm | 320 mm |
| DH04120600 | 12 | 15/32" | 600 mm | 450 mm |
| DH04140150 | 14 | 9/16" | 150 mm | 90 mm |
| DH04160150 | 16 | 5/8" | 150 mm | 85 mm |
| DH04180200 | 18 | 23/32" | 200 mm | 135 mm |
| DH04200200 | 20 | 25/32" | 200 mm | 135 mm |
Need a length that is not listed? Non-catalogue lengths are made from 500 pcs per size.
Product Details

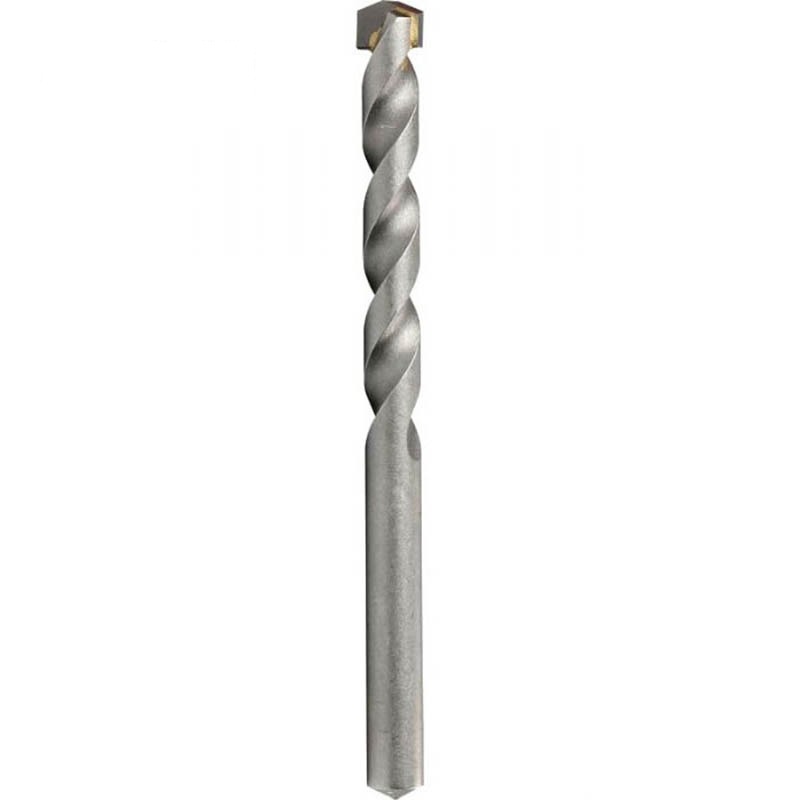

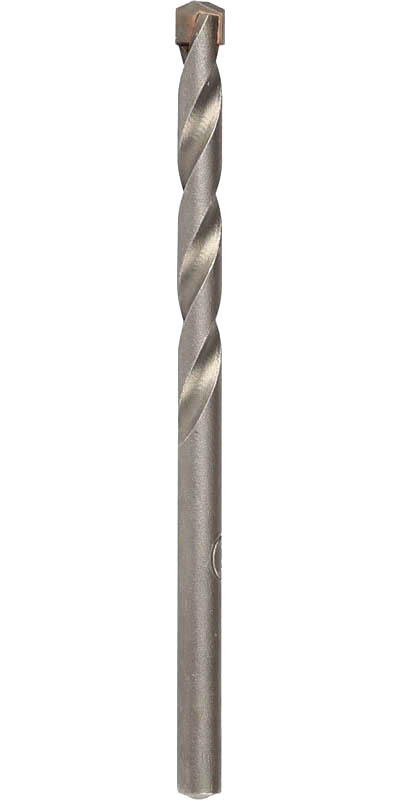

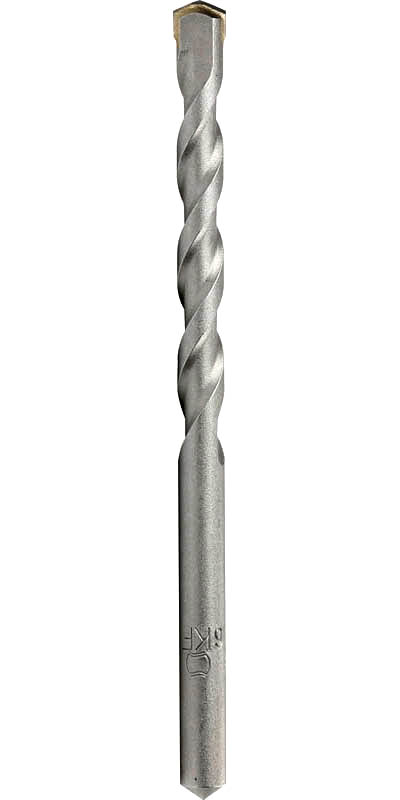

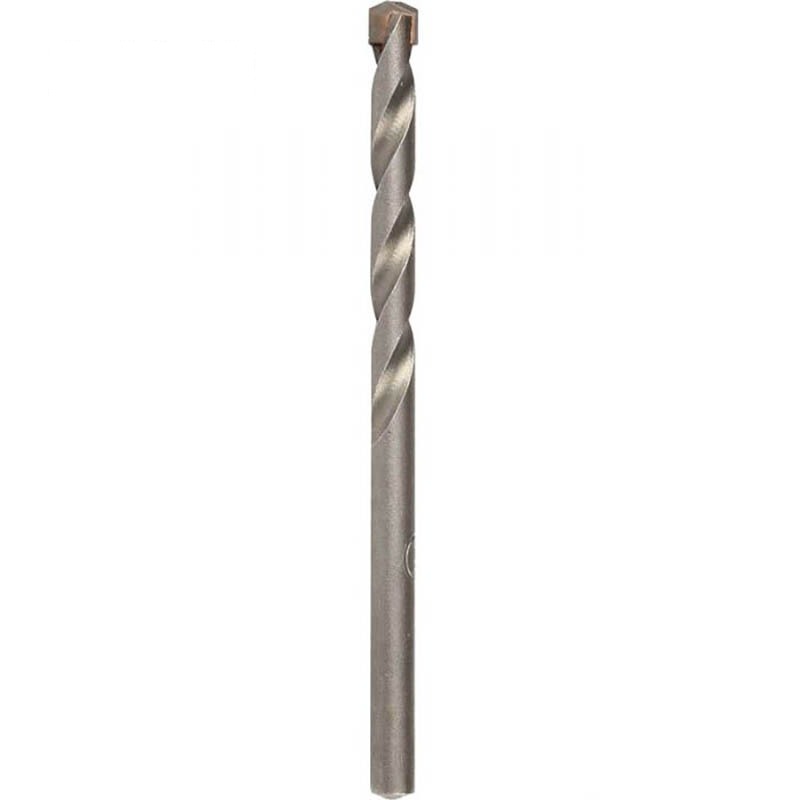

Tile & Brick Drill Bits — Multi-Use, Straight Shank — detail views
Made on PGM-certified lines
Same steel, brazing and heat treatment as our PGM series.
1200 °C automatic brazing
German MAHLER lines — no hand-torch joints.
20–30 days lead time
FOB Ningbo / Shanghai; CIF to SE Asia and the Gulf on request.
FAQ
What sizes of tile & brick drill bits — multi-use, straight shank do you make?
43 catalogue sizes from 3–20 mm diameter and 65–600 mm total length — see the full table with codes above. Non-catalogue lengths can be made from 500 pcs.
What is the MOQ for DH04-T?
100–200 pcs per size; sizes can be mixed within the series. Samples of standard sizes are free (courier collect) and ship in 5–7 days.
Can you put our brand on DH04-T?
Yes — laser or stamp marking on the shank plus printed blister, case or box. Artwork approval adds about one week to the standard lead time.
