Impact Masonry Drill Bits — Straight Shank
PGM-certified carbide-tipped masonry drill bits for impact drills (percussion drills). 3–28 mm, round shank (1/2" reduced shank above 13 mm), milled and sandblasted flutes. Also available with triangular and hex shanks. For brick, block, concrete, granite and marble.
43 sizes, 3–20 mm × 65–600 mm — see size table
MOQ
100–200 pcs per size
Lead time
20–30 days
Samples
Free, 5–7 days
Shipping
FOB Ningbo / Shanghai
- PGM certified impact series
- 3 – 28 mm × 60 – 200 mm
- Round, 1/2", triangular or hex shank
- Milled & sandblasted flutes
- MOQ 200 pcs per size
Manufactured by Zhejiang Dehui Tools Co., Ltd., Yueqing · 41+ years · PGM member since 2009 · ISO 9001 / 14001
Specifications
DH04 technical data
Size Table
DH04 sizes & catalogue codes
43 sizes. Code = DH + series + diameter + total length. Inch column is the nearest fractional equivalent for reference; bits are metric.
| Code | Ø mm | Ø inch | Total length | Working length |
|---|---|---|---|---|
| DH04030065 | 3 | 1/8" | 65 mm | 30 mm |
| DH04040075 | 4 | 5/32" | 75 mm | 40 mm |
| DH04040120 | 4 | 5/32" | 120 mm | 72 mm |
| DH04040150 | 4 | 5/32" | 150 mm | 100 mm |
| DH04050085 | 5 | 3/16" | 85 mm | 50 mm |
| DH04050100 | 5 | 3/16" | 100 mm | 55 mm |
| DH04050120 | 5 | 3/16" | 120 mm | 72 mm |
| DH04050150 | 5 | 3/16" | 150 mm | 100 mm |
| DH04050200 | 5 | 3/16" | 200 mm | 135 mm |
| DH04060100 | 6 | 1/4" | 100 mm | 55 mm |
| DH04060120 | 6 | 1/4" | 120 mm | 72 mm |
| DH04060150 | 6 | 1/4" | 150 mm | 100 mm |
| DH04060200 | 6 | 1/4" | 200 mm | 135 mm |
| DH04060250 | 6 | 1/4" | 250 mm | 180 mm |
| DH04060300 | 6 | 1/4" | 300 mm | 225 mm |
| DH04070100 | 7 | 9/32" | 100 mm | 55 mm |
| DH04070120 | 7 | 9/32" | 120 mm | 72 mm |
| DH04070150 | 7 | 9/32" | 150 mm | 100 mm |
| DH04070350 | 7 | 9/32" | 350 mm | 275 mm |
| DH04080120 | 8 | 5/16" | 120 mm | 72 mm |
| DH04080150 | 8 | 5/16" | 150 mm | 90 mm |
| DH04080200 | 8 | 5/16" | 200 mm | 135 mm |
| DH04080250 | 8 | 5/16" | 250 mm | 180 mm |
| DH04080300 | 8 | 5/16" | 300 mm | 225 mm |
| DH04080400 | 8 | 5/16" | 400 mm | 320 mm |
| DH04080600 | 8 | 5/16" | 600 mm | 450 mm |
| DH04100120 | 10 | 13/32" | 120 mm | 72 mm |
| DH04100150 | 10 | 13/32" | 150 mm | 100 mm |
| DH04100200 | 10 | 13/32" | 200 mm | 135 mm |
| DH04100250 | 10 | 13/32" | 250 mm | 180 mm |
| DH04100300 | 10 | 13/32" | 300 mm | 225 mm |
| DH04100400 | 10 | 13/32" | 400 mm | 320 mm |
| DH04100600 | 10 | 13/32" | 600 mm | 450 mm |
| DH04120150 | 12 | 15/32" | 150 mm | 90 mm |
| DH04120200 | 12 | 15/32" | 200 mm | 135 mm |
| DH04120250 | 12 | 15/32" | 250 mm | 180 mm |
| DH04120300 | 12 | 15/32" | 300 mm | 225 mm |
| DH04120400 | 12 | 15/32" | 400 mm | 320 mm |
| DH04120600 | 12 | 15/32" | 600 mm | 450 mm |
| DH04140150 | 14 | 9/16" | 150 mm | 90 mm |
| DH04160150 | 16 | 5/8" | 150 mm | 85 mm |
| DH04180200 | 18 | 23/32" | 200 mm | 135 mm |
| DH04200200 | 20 | 25/32" | 200 mm | 135 mm |
Need a length that is not listed? Non-catalogue lengths are made from 500 pcs per size.
Product Details

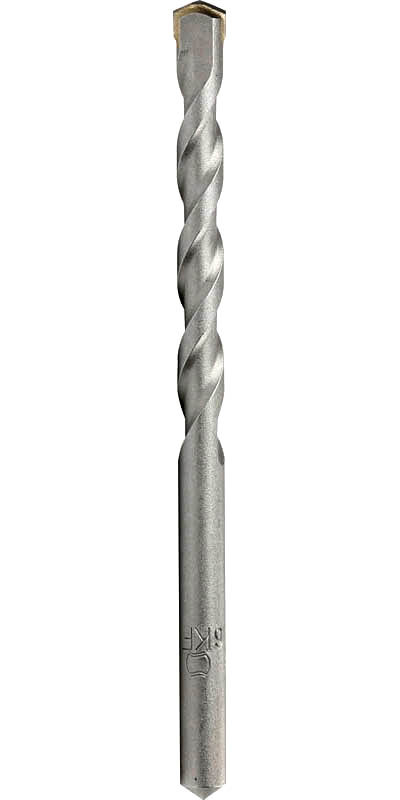

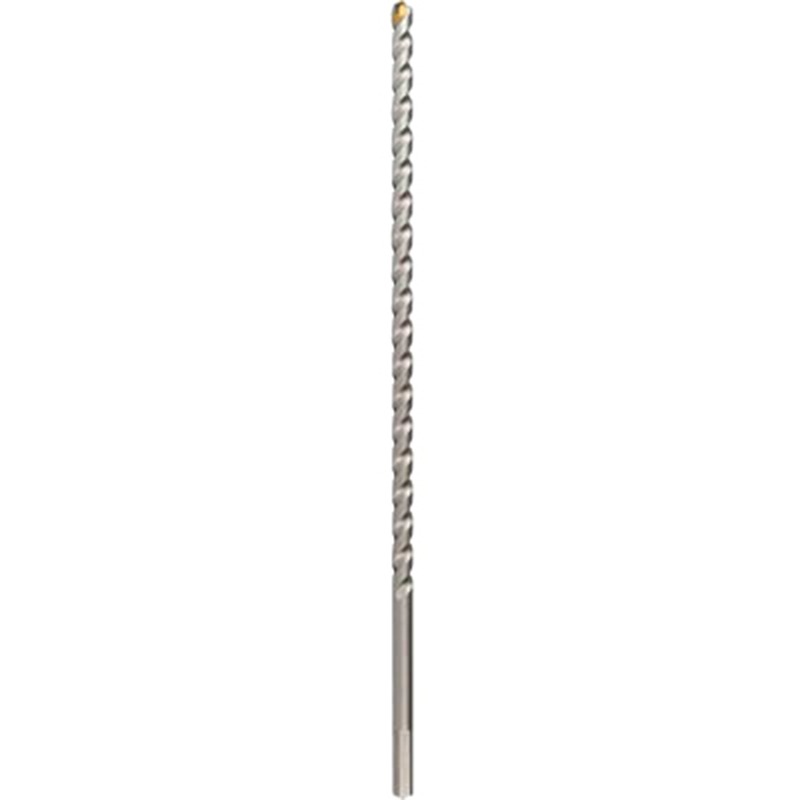

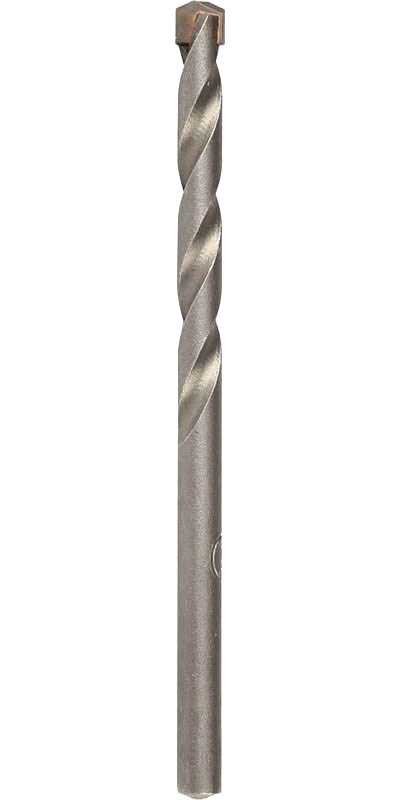

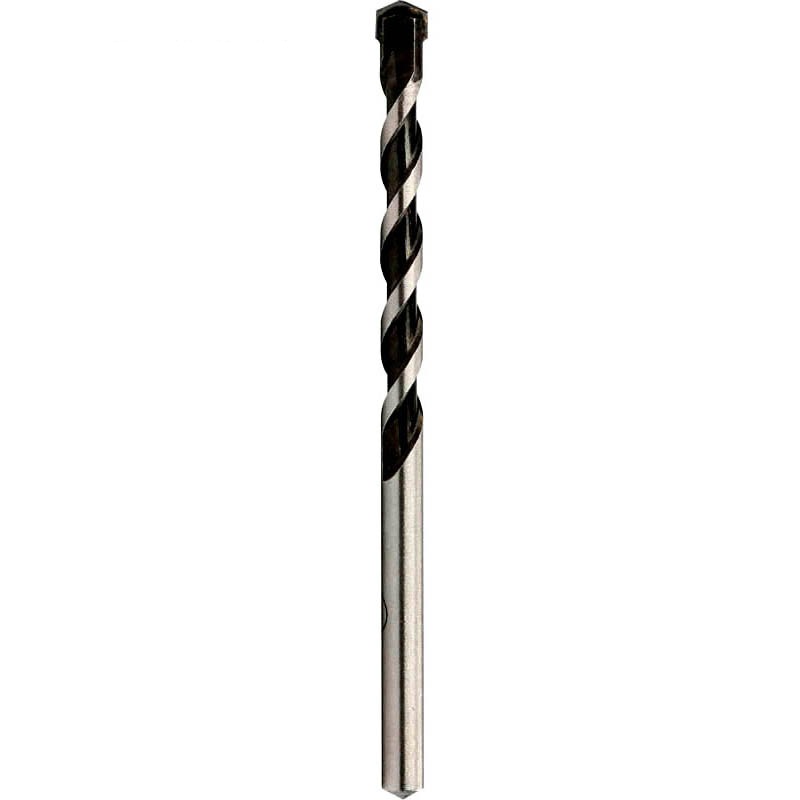

Impact Masonry Drill Bits — Straight Shank — detail views

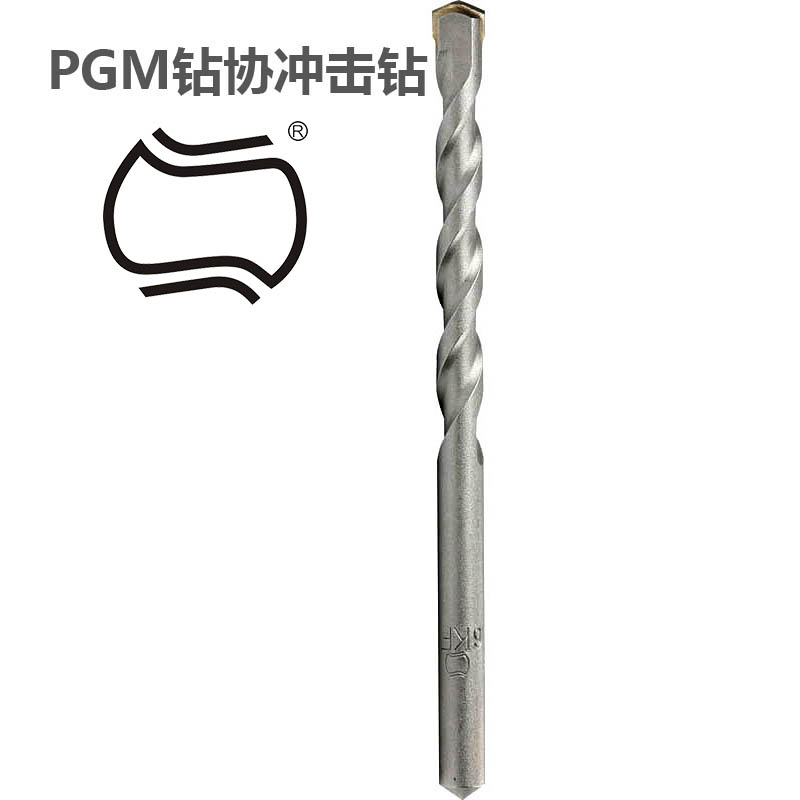

PGM certified series
Tested hole tolerance, tip symmetry and life.
1200 °C automatic brazing
German MAHLER lines — no hand-torch joints.
20–30 days lead time
FOB Ningbo / Shanghai; CIF to SE Asia and the Gulf on request.
FAQ
What sizes of impact masonry drill bits — straight shank do you make?
43 catalogue sizes from 3–20 mm diameter and 65–600 mm total length — see the full table with codes above. Non-catalogue lengths can be made from 500 pcs.
What is the MOQ for DH04?
100–200 pcs per size; sizes can be mixed within the series. Samples of standard sizes are free (courier collect) and ship in 5–7 days.
Is DH04 PGM certified?
Yes. Impact Masonry Drill Bits — Straight Shank is within the scope of Dehui's PGM (Prüfgemeinschaft Mauerbohrer e.V.) certificate, held since 2009. The test covers hole diameter tolerance, carbide tip symmetry and drilling performance.
Can you put our brand on DH04?
Yes — laser or stamp marking on the shank plus printed blister, case or box. Artwork approval adds about one week to the standard lead time.
