HSS M2 (6542) Fully Ground Twist Drill Bits
Fully ground HSS M2 (W6Mo5Cr4V2, "6542") twist drill bits, 1–13 mm, DIN 338 jobber length with 135° split point. Bright or black-oxide finish, for steel, aluminium, copper and stainless sheet.
MOQ
100–200 pcs per size
Lead time
20–30 days
Samples
Free, 5–7 days
Shipping
FOB Ningbo / Shanghai
- HSS M2 / 6542 fully ground
- 1 – 13 mm, DIN 338
- 135° split point
- Bulk or private-label blister / 19-pc / 25-pc sets
Manufactured by Zhejiang Dehui Tools Co., Ltd., Yueqing · 41+ years · PGM member since 2009 · ISO 9001 / 14001
Specifications
DH-6542 technical data
Specification Table
DH-6542 sizes
| Specification | Total length | Work Length |
|---|---|---|
| 1 | 34 | 12 |
| 1.5 | 40 | 18 |
| 2 | 49 | 24 |
| 2.5 | 57 | 30 |
| 3 | 61 | 33 |
| 4 | 75 | 43 |
| 4.2 | 75 | 43 |
| 4.5 | 80 | 47 |
| 5 | 85 | 51 |
| 5.2 | 86 | 52 |
| 5.5 | 93 | 57 |
| 6 | 93 | 57 |
| 7.5 | 109 | 69 |
| 8 | 117 | 75 |
| 8.5 | 117 | 75 |
| 9 | 125 | 81 |
| 9.5 | 125 | 81 |
| 10 | 133 | 87 |
| 10.5 | 133 | 87 |
| 11 | 142 | 94 |
| 11.5 | 142 | 94 |
| 12 | 151 | 101 |
| 12.5 | 151 | 101 |
| 13 | 151 | 101 |
| 3 | 4.4 | 1.1 |
| 3.2 | 4.4 | 1.1 |
| 3.5 | 4.8 | 1.4 |
| 4 | 5.3 | 1.6 |
| 4.2 | 5.5 | 1.7 |
| 5.2 | 6.4 | 2.4 |
Product Details

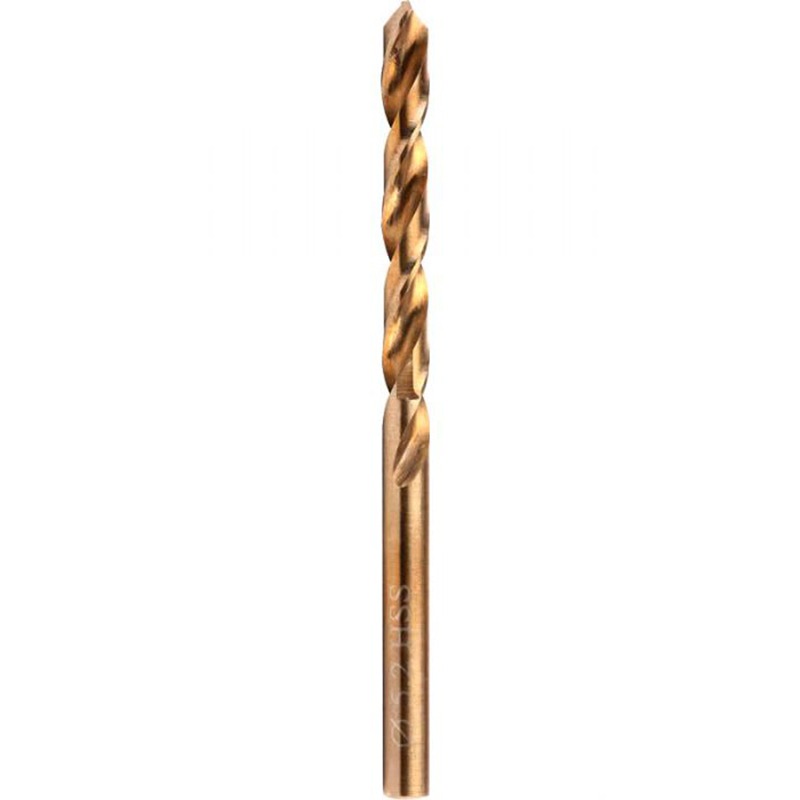

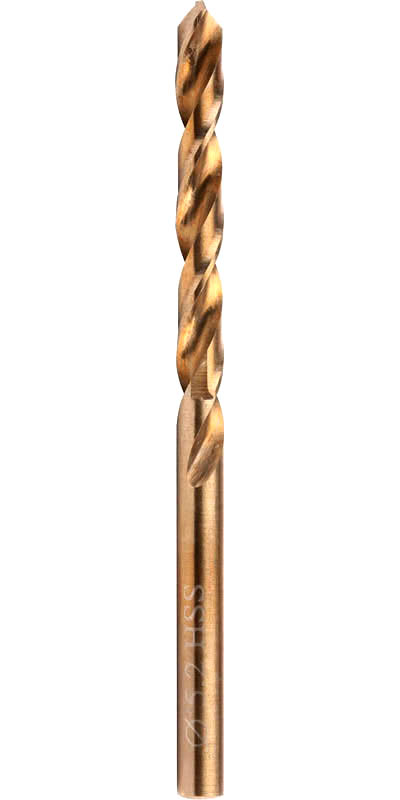

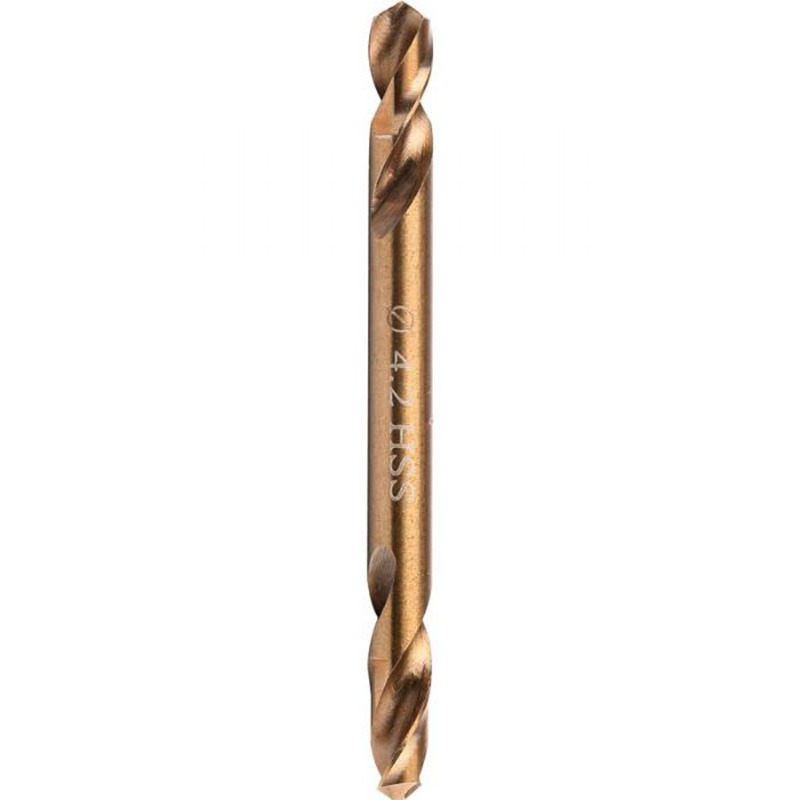

HSS M2 (6542) Fully Ground Twist Drill Bits — detail views
Made on PGM-certified lines
Same steel, brazing and heat treatment as our PGM series.
1200 °C automatic brazing
German MAHLER lines — no hand-torch joints.
20–30 days lead time
FOB Ningbo / Shanghai; CIF to SE Asia and the Gulf on request.
FAQ
What sizes of hss m2 (6542) fully ground twist drill bits do you make?
See the specification table above; custom specifications are available from 100–200 pcs per size.
What is the MOQ for DH-6542?
100–200 pcs per size; sizes can be mixed within the series. Samples of standard sizes are free (courier collect) and ship in 5–7 days.
Can you put our brand on DH-6542?
Yes — laser or stamp marking on the shank plus printed blister, case or box. Artwork approval adds about one week to the standard lead time.
